Graphing for Windows Phone 7– Mood Tracker #6

Posted On Sat, 02 Jul 2011 00:41:25 +0000. Filed in Mobile, MoodTracker. By Vaibhav Bhandari.

Wishing every one a happy independence day!

In the last post we enabled Mood Tracker to enter new data in to HealthVault. Before I start this post in details of adding graphing layer let me motivate it by showing what the graph for Mood Tracker looks like -

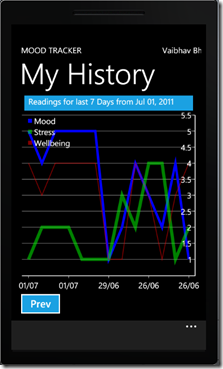

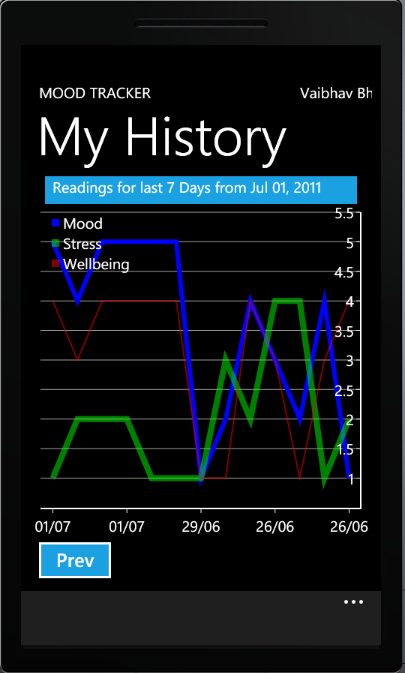

Fig 1. Graphing Over the 7 days

The interesting aspect here is that we are tracking Mood, Stress and Wellbeing over a period of one week, and looking for patterns in terms of mood, stress and wellbeing correlations. There are better ways to do graphing for this data but this is a simplistic approach.

In order to be able to get data from HealthVault for a specific time period we will have to update the implementation of our GetThings method to allow for a filter for effective date max and min. Notice the interesting formatting we need to do to make DateTime serializable.

<span class="kwrd">private</span> <span class="kwrd">static</span> <span class="kwrd">string</span> EffDateMinXml(DateTime? effDateMin)
{
    <span class="kwrd">if</span> (effDateMin != <span class="kwrd">null</span>)
        <span class="kwrd">return</span>
            <span class="kwrd">string</span>.Format(<span class="str">@"<eff-date-min>{0}</eff-date-min>"</span>,
                effDateMin.Value.ToString(<span class="str">"yyyy-MM-ddTHH:mm:ss.FFFZ"</span>,
                            CultureInfo.InvariantCulture)
                );
    <span class="kwrd">else</span> <span class="kwrd">return</span> <span class="str">""</span>;
}

.csharpcode, .csharpcode pre { font-size: small; color: black; font-family: consolas, “Courier New”, courier, monospace; background-color: #ffffff; /white-space: pre;/ } .csharpcode pre { margin: 0em; } .csharpcode .rem { color: #008000; } .csharpcode .kwrd { color: #0000ff; } .csharpcode .str { color: #006080; } .csharpcode .op { color: #0000c0; } .csharpcode .preproc { color: #cc6633; } .csharpcode .asp { background-color: #ffff00; } .csharpcode .html { color: #800000; } .csharpcode .attr { color: #ff0000; } .csharpcode .alt { background-color: #f4f4f4; width: 100%; margin: 0em; } .csharpcode .lnum { color: #606060; }Once we are powered with a way to selectively get information from HealthVault we can simply make use of the awesome open-source amCharts library. Infact I added it to the project with one-click using NuGet Package manager (note to self: may be post a version of HealthVault Windows Phone library on NuGet). Here is a snippet of how I configured the SerialChart.

<p><span class="kwrd"><</span><span class="html">amq:SerialChart</span> <span class="attr">x:Name</span><span class="kwrd">="EmotionsChart"</span>
                <span class="attr">BorderThickness</span><span class="kwrd">="1"</span>
                <span class="attr">DataSource</span><span class="kwrd">="{Binding EmotionList}"</span>
                <span class="attr">CategoryValueMemberPath</span><span class="kwrd">="FormattedWhen"</span>
                <span class="attr">AxisForeground</span><span class="kwrd">="White"</span>
                <span class="attr">PlotAreaBackground</span><span class="kwrd">="Black"</span>
                <span class="attr">GridStroke</span><span class="kwrd">="DarkGray"</span> <span class="attr">Height</span><span class="kwrd">="463"</span> <span class="attr">Width</span><span class="kwrd">="450"</span><span class="kwrd">></span>
    <span class="kwrd"><</span><span class="html">amq:SerialChart.Graphs</span><span class="kwrd">></span>
        <span class="kwrd"><</span><span class="html">amq:LineGraph</span> <span class="attr">ValueMemberPath</span><span class="kwrd">="Mood"</span>
                        <span class="attr">Title</span><span class="kwrd">="Mood"</span> <span class="attr">Brush</span><span class="kwrd">="Blue"</span>
                        <span class="attr">StrokeThickness</span><span class="kwrd">="6"</span>
                        <span class="attr">BorderBrush</span><span class="kwrd">="Cornsilk"</span><span class="kwrd">/></span>
        <span class="kwrd"><</span><span class="html">amq:LineGraph</span> <span class="attr">ValueMemberPath</span><span class="kwrd">="Stress"</span>
                        <span class="attr">Title</span><span class="kwrd">="Stress"</span> <span class="attr">Brush</span><span class="kwrd">="#8000FF00"</span>
                        <span class="attr">StrokeThickness</span><span class="kwrd">="8"</span> <span class="kwrd">/></span>
        <span class="kwrd"><</span><span class="html">amq:LineGraph</span> <span class="attr">ValueMemberPath</span><span class="kwrd">="Wellbeing"</span>
                        <span class="attr">Title</span><span class="kwrd">="Wellbeing"</span>
                        <span class="attr">StrokeThickness</span><span class="kwrd">="2"</span>
                        <span class="attr">Brush</span><span class="kwrd">="#80FF0000"</span><span class="kwrd">/></span>
    <span class="kwrd"></</span><span class="html">amq:SerialChart.Graphs</span><span class="kwrd">></span>
<span class="kwrd"></</span><span class="html">amq:SerialChart</span><span class="kwrd">></span></p><p><span class="kwrd"></span> </p>

.csharpcode, .csharpcode pre { font-size: small; color: black; font-family: consolas, “Courier New”, courier, monospace; background-color: #ffffff; /white-space: pre;/ } .csharpcode pre { margin: 0em; } .csharpcode .rem { color: #008000; } .csharpcode .kwrd { color: #0000ff; } .csharpcode .str { color: #006080; } .csharpcode .op { color: #0000c0; } .csharpcode .preproc { color: #cc6633; } .csharpcode .asp { background-color: #ffff00; } .csharpcode .html { color: #800000; } .csharpcode .attr { color: #ff0000; } .csharpcode .alt { background-color: #f4f4f4; width: 100%; margin: 0em; } .csharpcode .lnum { color: #606060; }

Note that the formatting for the X-Axis is derived by a special property we added to the EmotionalStateModel, it probably is not the right place to add that property.

Over last few days I have implemented an interesting idea to make entering emotional state information easier similar in themes as the original mood tree but more focused on making data entry fun , I call it vMudi.

So next time w’ll look at vMudi.
